Value Stream

26 shapes · Free · For SimpleDiagrams 5 for Mac

manufacturing process

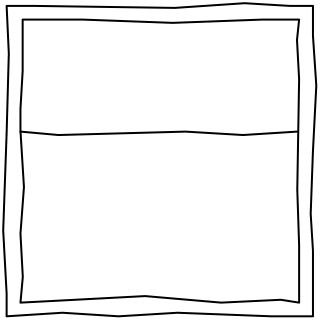

manufacturing process shared

outside source

data box

inventory box

buffer or safety stock

truck shipment

push arrow

finished goods to customer

FIFO sequence flow (right)

FIFO sequence flow (left)

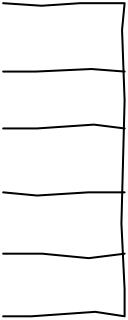

supermarket

physical pull

move by forklift

boat shipment

manual info flow

electronic info flow

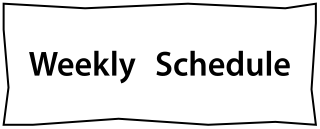

weekly schedule

load leveling

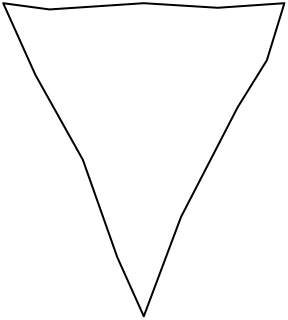

signal kanban

kanban post

sequenced pull ball

go see production scheduling

kaizen lightening burst

operator

quality problem

Download library

Library: Value Stream

Version: 1

Shapes for value stream mapping: processes, data boxes, inventory, shipments, push and pull arrows, kanban and the kaizen burst. Use them to help your team get products from creation to customer as quickly as you can.

Free. No card needed. New here? Create an account, it takes a minute.

What you need to use this

SimpleD, of course. These shapes work in SimpleDiagrams 5 for Mac. Don't have it yet?

Get SimpleDiagrams

How to install

Download the library .zip and unzip it. The .sdlibrary file is inside. Then:

Double-click the .sdlibrary file to automatically install it into SimpleDiagrams.
Drag and drop the .sdlibrary file onto the library panel in SimpleDiagrams.
Open the Library panel menu in SimpleDiagrams and choose "Import Library…", then pick the .sdlibrary file.

About updates

If a newer version of a library comes out and you install it, SimpleDiagrams will ask before replacing the one you have. It will also tell you that library packages are not digitally signed yet. That is expected. Only install libraries you downloaded from this page.

SHA-256 checksum, for anyone who wants to check the download.

fb80308c0e2267579a4f07bfbb1b8606b43f26c88327cd34747a5e48db3a4d3c

Licence

Free to use in your own diagrams, including commercial work, under the Service and Shape Licence. Please don't pass the library on; send people here instead.

Hand-drawn by McQuillen Interactive. These shapes follow the value-stream-mapping symbols introduced by the Lean Enterprise Institute in Learning to See. They are not produced, sponsored or endorsed by the Lean Enterprise Institute.
